USIE A1 Electric Scooter – Overview & Specifications

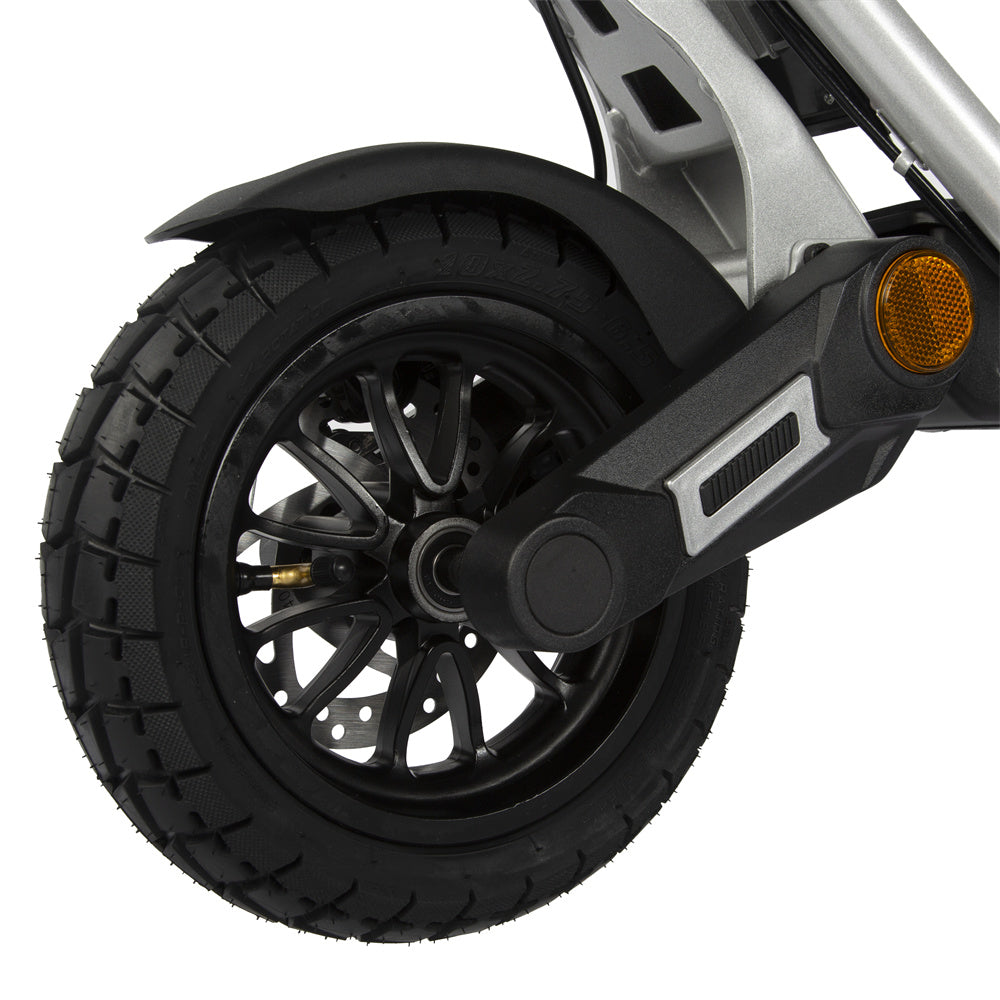

The USIE A1 is a powerful and stylish electric scooter designed for performance and everyday practicality. With a robust steel frame and 10-inch vacuum off-road tires, it ensures both durability and a smooth ride on varied terrains. The scooter weighs 25.5 ± 0.5 kg (N.W.), with a gross weight of 29.5 ± 0.5 kg, and arrives in packaging measuring 1170 × 250 × 620 mm.

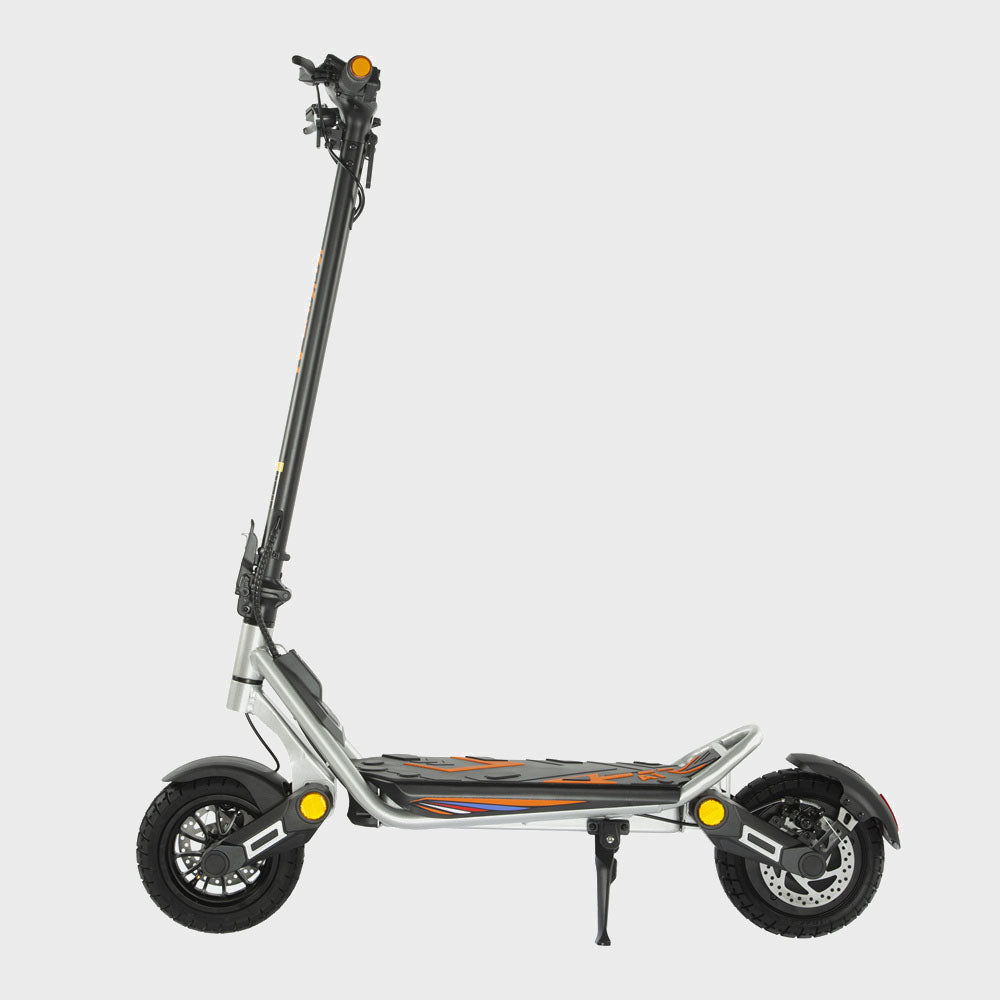

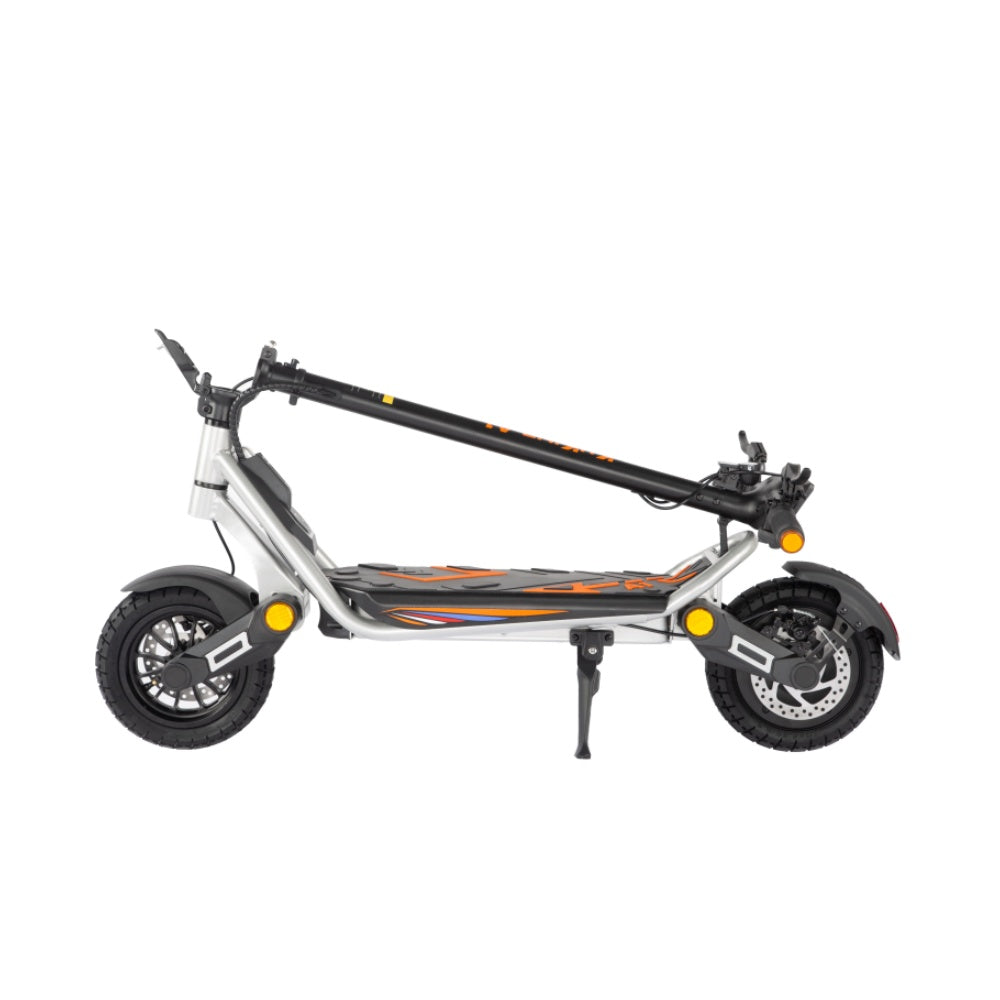

When unfolded, the scooter measures 1154 × 580 × 1298 mm (L×W×H) and folds down compactly to 1154 × 580 × 535 mm. The handlebar spans 580 mm, with a deck size of 510 × 220 mm, and a pedal-to-handlebar height of 990 mm. The chassis height from ground is 160 mm.
Powered by a 48V brushless DC hub motor, it delivers 800W rated and 1000W peak power, with a top speed of 45 km/h (with 65 kg load). Three riding modes provide controlled speed options:
The 13Ah lithium battery (18650 cells, 2600mAh per cell) offers a range of up to 45 km at medium speed. Charging takes 7–8 hours, with a 54.6V/2A charger operating on 100–240V AC input. The total power consumption is 0.624 kWh.

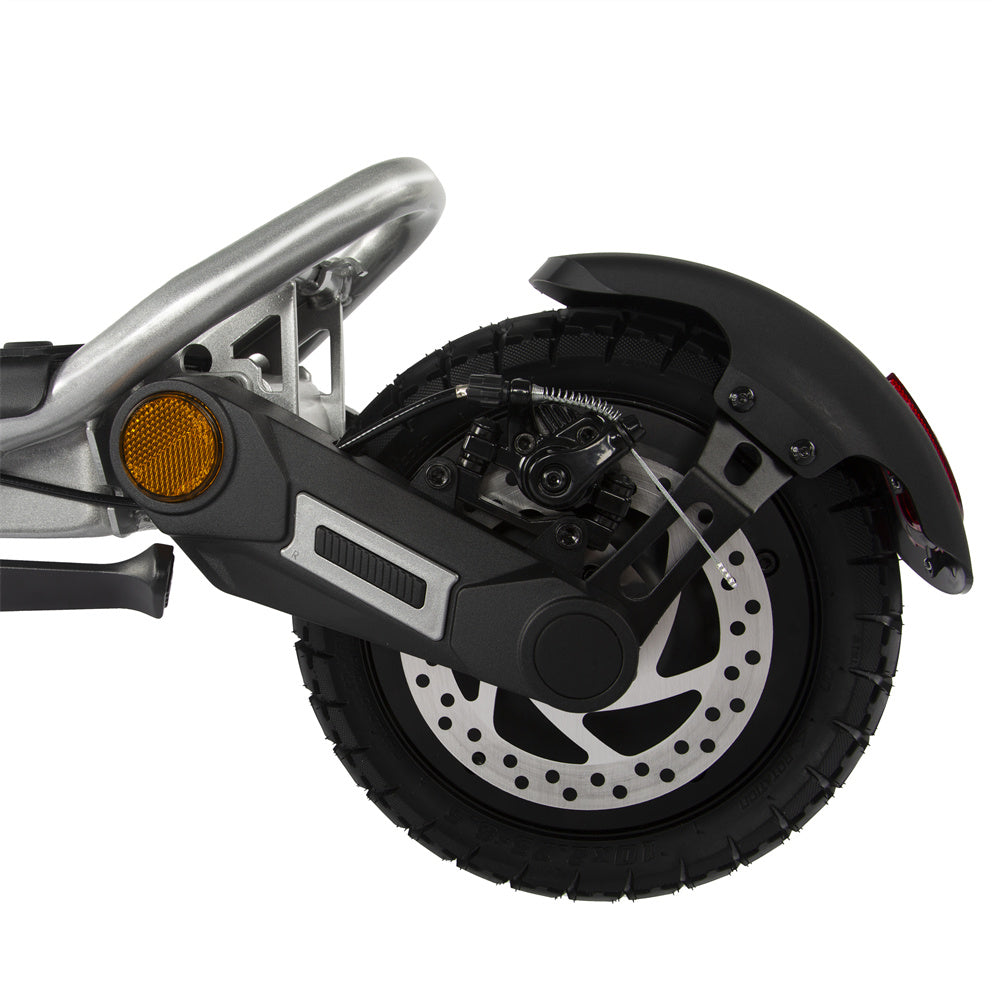

The USIE A1 excels in climbing ability, handling slopes up to 20°, and ensures safety with front and rear disc brakes plus an electronic power-off brake. Braking distance ranges from 6 to 8 meters at max speed. The entire system is IPX4 waterproof, ready for light rain or splash conditions.
Shock absorption is handled by glue-filled front and rear suspension, offering stability without excessive bounce. The LED headlight (1.7W, adjustable angle) lights up to 6㎡, while turn signals and a responsive taillight enhance night visibility.
The onboard LED display (80 × 50 mm, ABS casing) shows speed, battery level, cruise mode, riding mode, mileage, and more. Users can:
-
Power on/off with the key + power button
-
Switch gears or activate cruise via short presses
-
Enter menu settings (P1–PC) by triple-tapping the power button
-
Enable speed limit mode by holding the brake lever and double-tapping the power button
Menu options include:
-
P1: km/mile toggle
-
P5: Cruise control on/off
-
P6: Zero start/non-zero start
-
P8: Auto-sleep timer
-
PA: Start acceleration force
-
PB: Brake strength
-
PC: Clear total mileage
Included in the box:
1 charger, 1 instruction manual, 2 Allen wrenches, 4 pole screws, 2 desiccant packs, and 2 keys. (Scooter not included in accessory list.)
Specification
| Specification |
Details |
| Item |
Specification |
| Product |
KuKirin A1 |
| Dimensions (Expanded) |
1154×580×1298 mm |
| Dimensions (Folded) |
1154×580×535 mm |
| Medium Speed Mileage |
≈45 km |
| Top Speed |
45 km/h |
| Speed (Load 60KG) |
1st Gear: 20 km2nd Gear: 30 km3rd Gear: 45 km |
| Motor Rated Voltage |
48V |
| Motor Power |
800W |
| Climb Capability |
≤20° |
| Battery Rated Voltage |
48V |
| Battery Capacity |
13Ah |
| Charger Output Voltage |
54.6V |
| Charger Output Current |
2A |
| Charging Time |
7–8 hours |
| Net Weight |
25.5 kg (±0.5 kg) |
| Wheel Size |
10-inch vacuum tires |
| Brakes |
Dual disc brakes |
| Pedal Width |
220 mm |
| Weight Capacity |
120 kg |
| Waterproof Grade |
IP54 |
| Riser Handle (Foldable) |
NO |
| Foldable Body |
YES |
